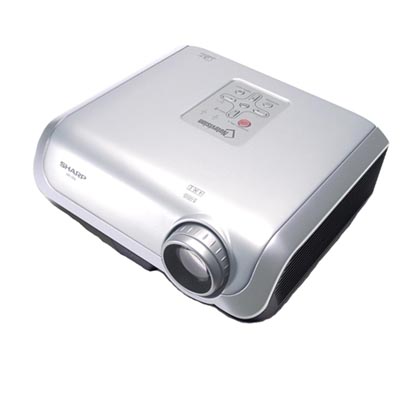

Description: The multi-use "Educator Series" XR-10S, with 2000 ANSI Lumens brightness and SVGA native resolution, offers high image quality and performance at a remarkably affordable price. Incorporating the latest Texas Instruments DDR DLP™ display technology with 3x speed, 4-segment color wheel in conjunction with TrueVision™ (DDP2000) image processing, the XR-10S delivers superior color quality, brightness and reliability. The projector is an ideal choice for extended-use operation thanks to multiple ultra-quiet cooling fans and extended lamp life. A full complement of inputs and outputs (including RGB-loop through, stereo variable audio line-output and RS-232C) make the projector ideal for "portable" use and higher-end integration as well.

Features Specifications 2000 ANSI Lumens (1750 ANSI Lumens in Low-Power "eco & quiet" mode) ensures high brightness for use in most any conference room or classroom setting. DDR DLP™ Technology with TrueVision™ (DDP2000) advanced video circuitry  provides superior reliability and image quality. 4-segment / 3-speed color wheel with Advanced Condenser Lens Optical System, sRGB, color temperature adjustment and bright boost ensures enhanced color accuracy, uniformity and clarity (with 2000:1 contrast ratio). Wide Computer and Video Compatibility With native SVGA resolution (800 x 600) and compatibility up through SXGA+ (1400 x 1050), the XR-10S easily interfaces with PC, MAC and Workstation Computers. Additionally supports DTV and HDTV formats for connection to DVD players, VCRs, tuners and video game systems. Low Power "Economy" Mode provides increased lamp life (up to 3000 hours*) for reduced cost of ownership along with low fan noise and power consumption. Includes Wireless Remote with Back/Forward PC Control and Image "Freeze" and Break Timer functions for convenient remote control of all standard operations, and presentation support (when used with AN-MR2 remote IR receiver). Sealed Optics (air filter is not required) prevents dirt and dust from entering optical system. Minimizes maintenance cost and extends operating life. On-Screen Setup Guide and "Help" Function ensures easy set up and simplified operation. Compact and Lightweight Design - with full complement of inputs and outputs is perfect for "portable" presentations, as well as permanent installations DETAILS: Brightness: 2000 ANSI Lumens Standard Mode; 1750 ANSI Lumens Low Power Mode Display Resolution:  (Native):  SVGA (800 x 600) Resolution Capability:  (Maximum):  SXGA+ (1400 x 1050) with ImageACE Resizing Compatibility:  Video Compatibility (DTV/HDTV): 480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i with 4:3 and 16:9 aspect ratios Frequency Range:  15-70 kHz Horizontal / 45-85 Hz Vertical Weight / Dimensions:  (w x h x d):  8.6 lbs. / 12.4" x 4.7" x 11.6" (including projecting parts) Unique Feature(s):  Short-throw zoom lens allows for a large projected image from a "short" throw distance; sealed optical system Panel Type:  0.55" DDR DLP™ (Single DMD™ Digital Micromirror Device) - 12º Dot Clock:  12-108 MHz PC Compatibility Mac Compatibility WS Compatibility Video System:  NTSC 3.58, 4.43 / PAL 50/60, M, N / SECAM DTV/HDTV Compatibility:  480i, 480p, 540p, 576i, 576p, 720p, 1035i, 1080i Video Circuitry:  sRGB Color Management plus Brightness and Contrast Boost Functions Resizing:  Intelligent ImageACE Resizing for compatibility up through SXGA+ (1400 x 1050) Center to Corner Ratio:  85% Contrast Ratio:  2000:1 (with advanced condenser lens optical system) Lens Type:  1.15x Short Throw Manual Zoom and Focus, F2.4-2.6, F=19.0-21.9mm, Throw Ratio: 1.75-2.0 PC Control:  RS-232C Remote Control:  Control with on-screen timer and image "freeze" function. Also includes forward/back presentation control when used with AN-MR2 remote IR receiver IR Carrier Frequency:  38KHz  Audio System:  2 Watt monaural audio system with 4cm x 2.85cm oval loudspeaker Lamp:  275 Watt DC (end-user replaceable) - model number AN-XR10LP or AN-XR10LP/1 Fan Noise:  33dB in standard mode; 30dB in low-power (economy) mode Power Source:  100V - 240V AC, 50/60Hz Power Consumption:  350W in "bright" lamp setting and "high" fan mode / 305W in "eco & quiet" lamp setting and "normal" fan mode / 4W standby Presentation Tools:  Incorporated into the wireless remote: Forward/back presentation control (when used with optional AN-MR2 remote IR receiver), on-screen break timer, image "freeze" function Limited Warranty:  3 years parts and labor with 2 years of Sharp "ER" 24-hour turnaround Express Repair Computer Inputs:  Computer/RGB (or Component) - 15 Pin HD (x2) Video Inputs:  Component Video (or RGB/Computer) - 15 Pin HD (x2); Independent S-Video - 4-pin DIN and Composite Video - RCA pin-type Audio Inputs:  PC/Component Stereo Audio Input - 3.5mm stereo mini Connector; "Video" Stereo Audio Input - 1-pair RCA pin-type Outputs:  RGB Monitor Loop-Through - 15 Pin HD; "VAO" (Variable Audio Output) line-out - 3.5mm stereo mini connector Additional Connectors:  RS-232C Input - 9 pin mini DIN Included Accessories:  Wireless Remote Control; two "AA" batteries; AC Power Cord; 9 10" RGB signal cable; attached lens cap; operation manual; CD-ROM manual Optional Accessories:  AN-XRCM30 ceiling mounting bracket; AN-EP10B extension tube for ceiling mount; AN-JT200 angle mount joint for ceiling mount; AN-CMCSS46 46" security cable system for use with ceiling mount and extension tube; AN-CMCSS16 16" security cable system for use with ceiling mount; AN-C3CP2 component video (3-RCA) to 15-pin D-Sub cable (9 10"); AN-A1RS RS-232C adaptor; AN-C10RS RS-232C serial control cable; AN-MR2 remote IR receiver (for forward/reverse presentation control); AN-C3BN 5-BNC to 15-pin D-sub cable (10); AN-LS1 ethernet to RS-232C adaptor Min/Max Screen Size:  40" - 300" (diagonal, 4:3) Min/Max Projection Distance:  4 7" (for 40" diagonal, 4:3) up to 39 8" (for 300" diagonal, 4:3) Other:  DTV/HDTV compatibility (both 4:3 and 16:9) for use with current and future video technologies.
